Best RV Brake Controllers

Proportional versus time-delay is the decision, and everything else is packaging. A proportional controller reads deceleration with an internal accelerometer and applies trailer brakes in step with how hard you are stopping, so a gentle approach to a light stays gentle and a panic stop puts full gain on the trailer. A time-delay unit ramps to a preset output on a fixed curve every time you touch the pedal, which means it either grabs on easy stops or arrives late on hard ones, and you feel that as fore and aft surging in a heavy fifth wheel. For anything above about 3,000 pounds, or any mountain grade, proportional is the one to buy. Axle rating is the second number to check, quoted as 1 to 2 axles on smaller units and 1 to 4 on the larger ones, because the controller has to supply current for every brake magnet on the trailer and an undersized unit runs hot and fades. Mounting shapes the install: a dash-mounted box with an LED readout puts gain and boost within reach and needs a four-wire run to the brake switch and the battery, a knob-only remote head hides the electronics under the dash for a clean cab, and a trailer-mounted plug-and-tow module needs no vehicle wiring at all, which is the answer for a rented tow vehicle. Self-diagnostics that flag an open circuit or a short are genuinely useful. Boost presets and display colors are not.

Sort byOur scoreValueBuild and materialsFeaturesFit for the jobTick up to 3 picks to compare them side by side.

Compare

#1

REDARC Tow-Pro Liberty Electric Trailer Brake Controller, Universal Fit for 1 to 2 Axle Cars, Trucks, SUVs, Proportional Braking, 12V

Our score8.6/10

See on Amazon

REDARC's Tow-Pro Liberty proportional electric trailer brake controller, universal fit for 1 to 2 axle trailers on 12V vehicles.

Fit for the job 9/10 · Features and specs 8/10 · Build and materials 9/10 · Value 8/10

• + Proportional braking gives smooth, natural trailer stops
• + Compact remote knob mounts neatly without a bulky dash box
• + REDARC is a respected towing and power electronics brand

• - Limited to 1 to 2 axle trailers, not larger multi-axle rigs
• - Needs a vehicle-specific harness purchased separately in many cases

Check price on AmazonSave

Compare

#2

Timilge Proportional Trailer Brake Controller Kit, Digital Electric Brake Control with LED Screen Display for 1-4 Axles Trailers, Smooth Stop Technology with Boost Mode

Our score8.3/10

See on Amazon

Timilge's proportional trailer brake controller kit with LED screen, boost mode and smooth stop technology for 1-4 axles.

Fit for the job 8/10 · Features and specs 9/10 · Build and materials 7/10 · Value 9/10

• + Proportional braking matches trailer braking to how hard you stop
• + Boost mode adds extra braking for heavy loads
• + Supports 1-4 axles, so it works with large travel trailers

• - Dash mounting and wiring harness must match your vehicle
• - Lesser-known brand compared with Tekonsha or REDARC

Check price on AmazonSave

Compare

#3

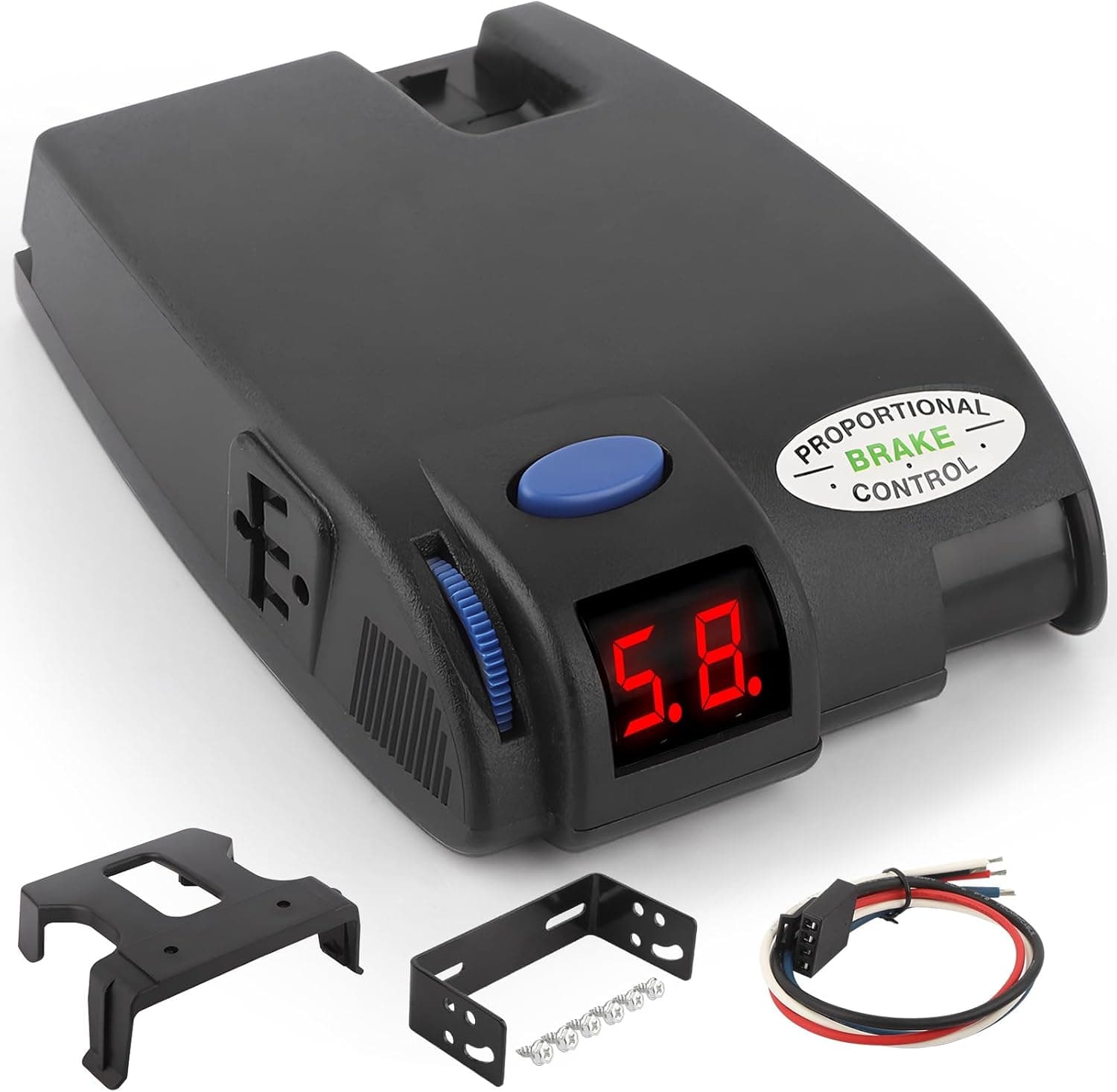

LAJBZ Electronic Brake Control - Proportional Trailer Brake Controller with Easy-to-Read LED Display, Self-Diagnostic, Plug & Play (Compatible with Tekonsha 90160 Primus IQ)

Our score7.8/10

See on Amazon

LAJBZ's proportional trailer brake controller with LED display, self-diagnostic and plug and play fit, compatible with Tekonsha 90160 Primus IQ.

Fit for the job 8/10 · Features and specs 8/10 · Build and materials 6/10 · Value 9/10

• + Compatible with Tekonsha 90160 Primus IQ mounting and harnesses
• + Self-diagnostic warns of wiring or connection issues
• + Easy-to-read LED display shows braking output clearly

• - Clone-style controller lacks the brand backing of Tekonsha
• - Harness adapter for your vehicle is still required

Check price on AmazonSave

Compare

#4

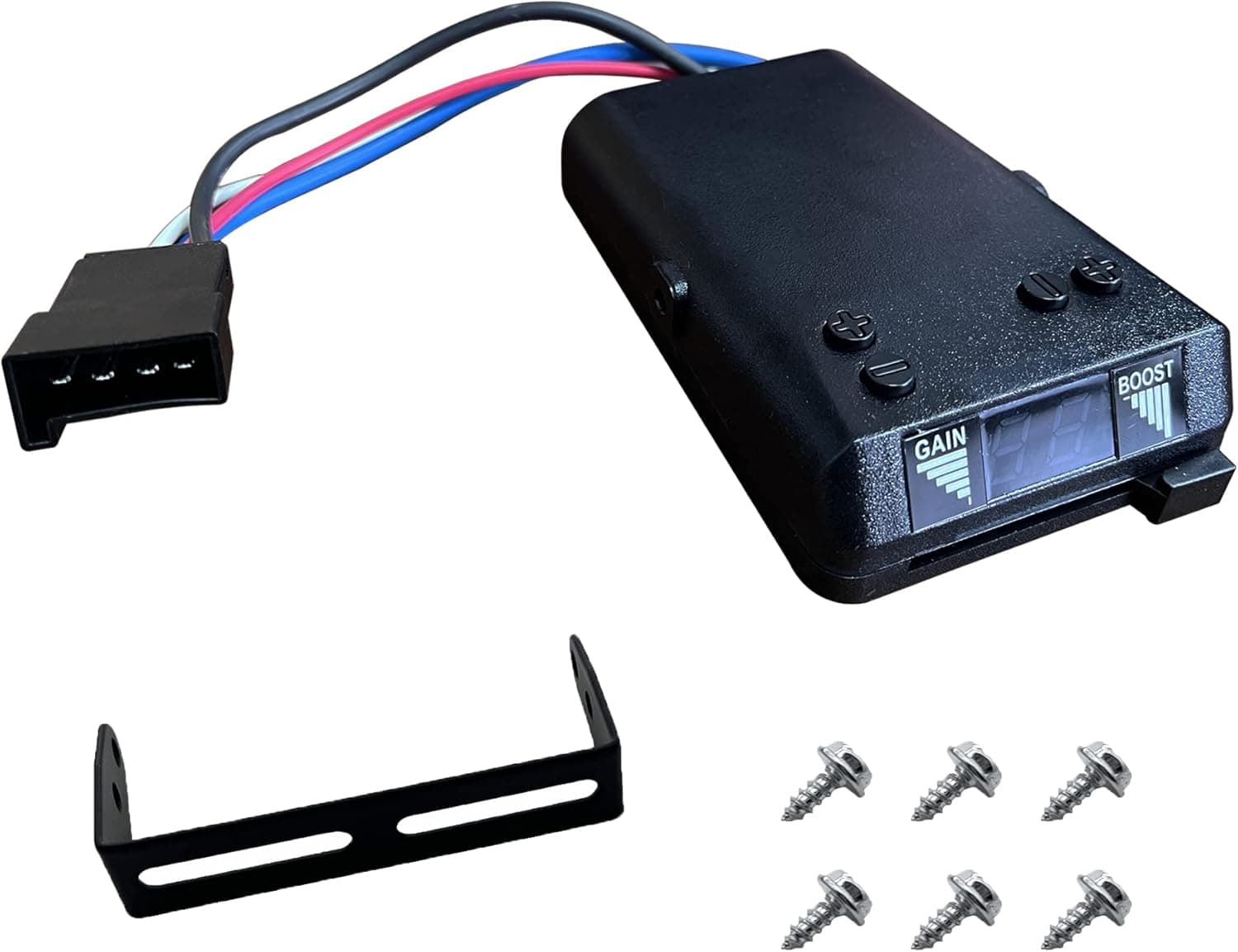

LeleoCar 8508211 Proportional Trailer Brake Controller Digital Electronic Monitor Compatible with 1 to 4 Axles Vehicle RV Trucks (Replace 8508211 Brakeman IV)

Our score7.3/10

See on Amazon

LeleoCar's 8508211 proportional digital trailer brake controller for 1 to 4 axles, a replacement for the Brakeman IV.

Fit for the job 7/10 · Features and specs 8/10 · Build and materials 6/10 · Value 8/10

• + Direct replacement for the 8508211 Brakeman IV unit
• + Proportional braking handles loads up to 1 to 4 axles
• + Digital monitor shows gain and output at a glance

• - Replacement-focused listing, so check your existing wiring first
• - Lesser-known brand than the original Brakeman maker

Check price on AmazonSave

Compare

#5

Pro Series 80500 POD Trailer Time-Delay Electric Brake Controller for Trailers with 1-2 Axles

Our score7.2/10

See on Amazon

Pro Series' 80500 POD time-delay electric brake controller for trailers with 1-2 axles.

Fit for the job 7/10 · Features and specs 7/10 · Build and materials 7/10 · Value 8/10

• + Compact POD design fits under dashes with little space
• + Simple time-delay control is easy to set up and use
• + Budget-friendly way to meet trailer brake requirements

• - Time-delay braking feels less smooth than proportional units
• - Limited to trailers with 1-2 axles, so bigger rigs need another unit

Check price on AmazonSave

Compare

#6

Autowbrake - Plug and Tow Trailer Mounted Electric Brake Controller

Our score6.8/10

See on Amazon

Autowbrake's plug and tow trailer mounted electric brake controller, installed on the trailer rather than the tow vehicle.

Fit for the job 7/10 · Features and specs 6/10 · Build and materials 7/10 · Value 7/10

• + Trailer mounted design means any tow vehicle can pull it
• + Plug and tow setup avoids wiring a controller into each truck
• + Handy for owners who switch between different tow vehicles

• - Driver cannot adjust gain from the cab while towing
• - Title gives no axle rating or braking type details

Check price on AmazonSave
